Legacy S175-C 1-3/4" Snap-Lok Clip Roof Panel
Legacy S175-C

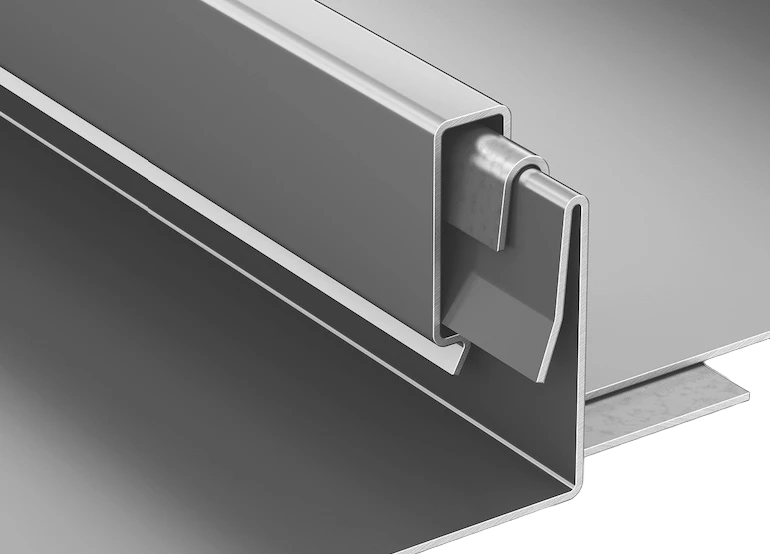

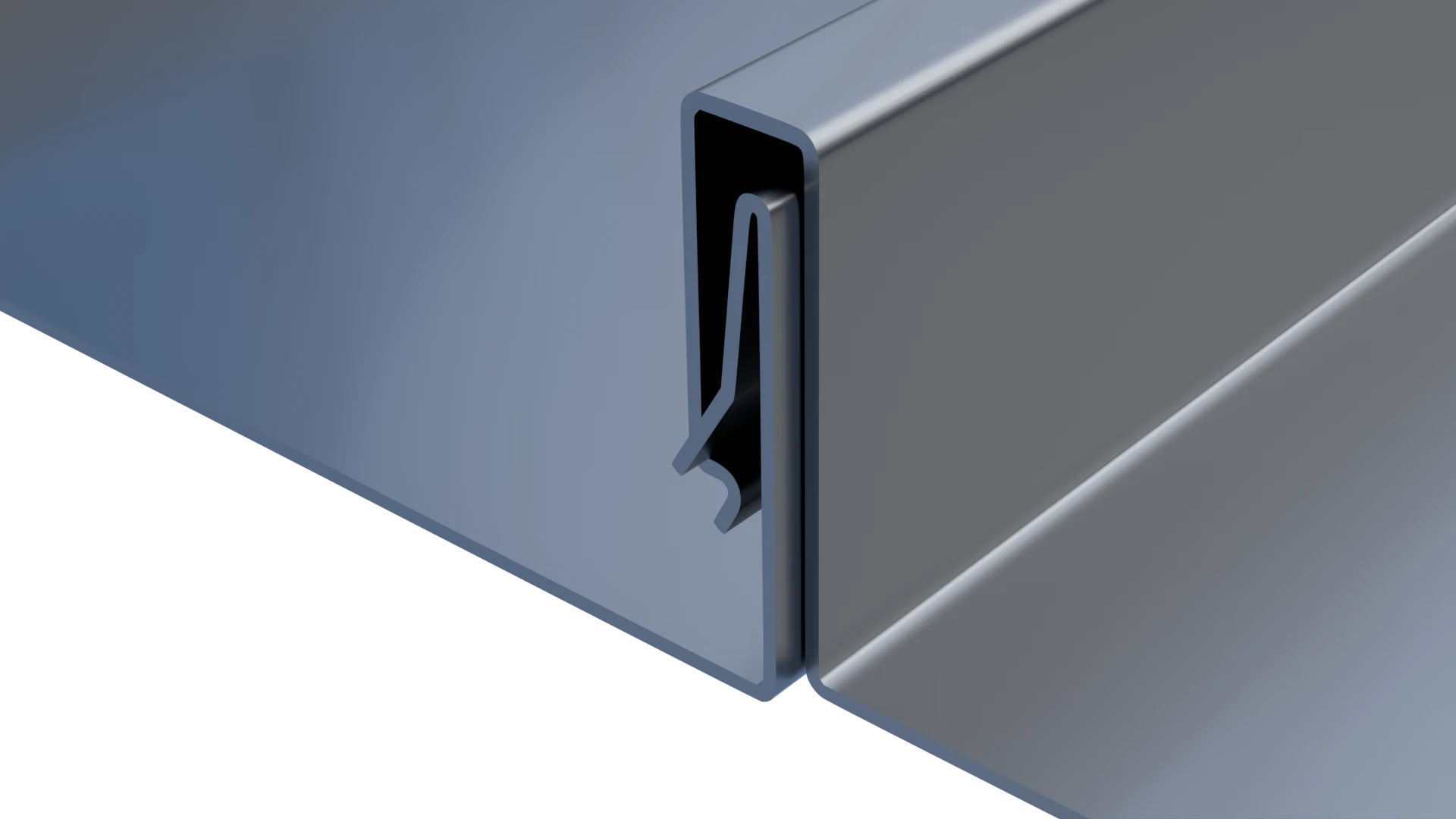

1-3/4" Snap-Lok Clip
The 1.75" Snap-Lok Clip panel combines sleek design with reliable performance, making it an excellent choice for residential and light commercial projects. Installed with concealed clips, this system provides a secure hold without the need for mechanical seaming, delivering a smooth, uninterrupted roofline. Its streamlined profile enhances curb appeal while maintaining strength and durability in all types of weather.

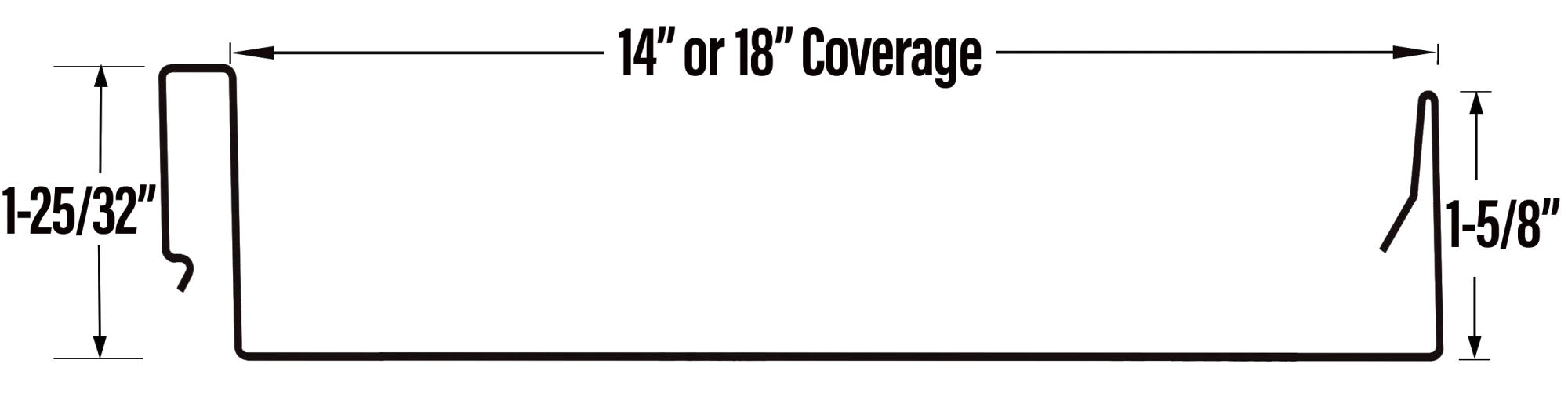

Panel Specifications
-
Seam: Snap-Lok Clip - No Mechanical Seaming
-
Rib Depth: 1-3/4"
-
Panel Coverage: 14", 18"
-
Material:
-
Steel - 22ga, 24ga, 26ga
-
Aluminum - .032, .040
-
Zinc - 7mm
-
Steel - 22ga, 24ga, 26ga
-
Minimum Slope: 2:12
-
Support: Plywood, B-Deck, OSB
-
Product Approvals: Florida Product, HVHZ, TDI
-
UL Listed
-
Options: (contact panel manufacturer for availability)
-
Clip Relief
-
Striations
-
Weathertight Warranty Eligible
-
Clip Relief
