Legacy S155-C 1-1/2" Snap-Lok Clip Roof Panel



Legacy S155-C

1-1/2" Snap-Lok Clip

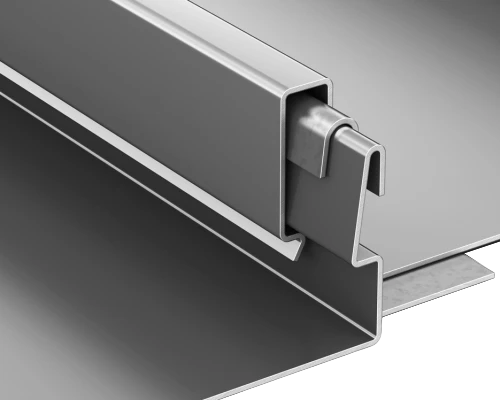

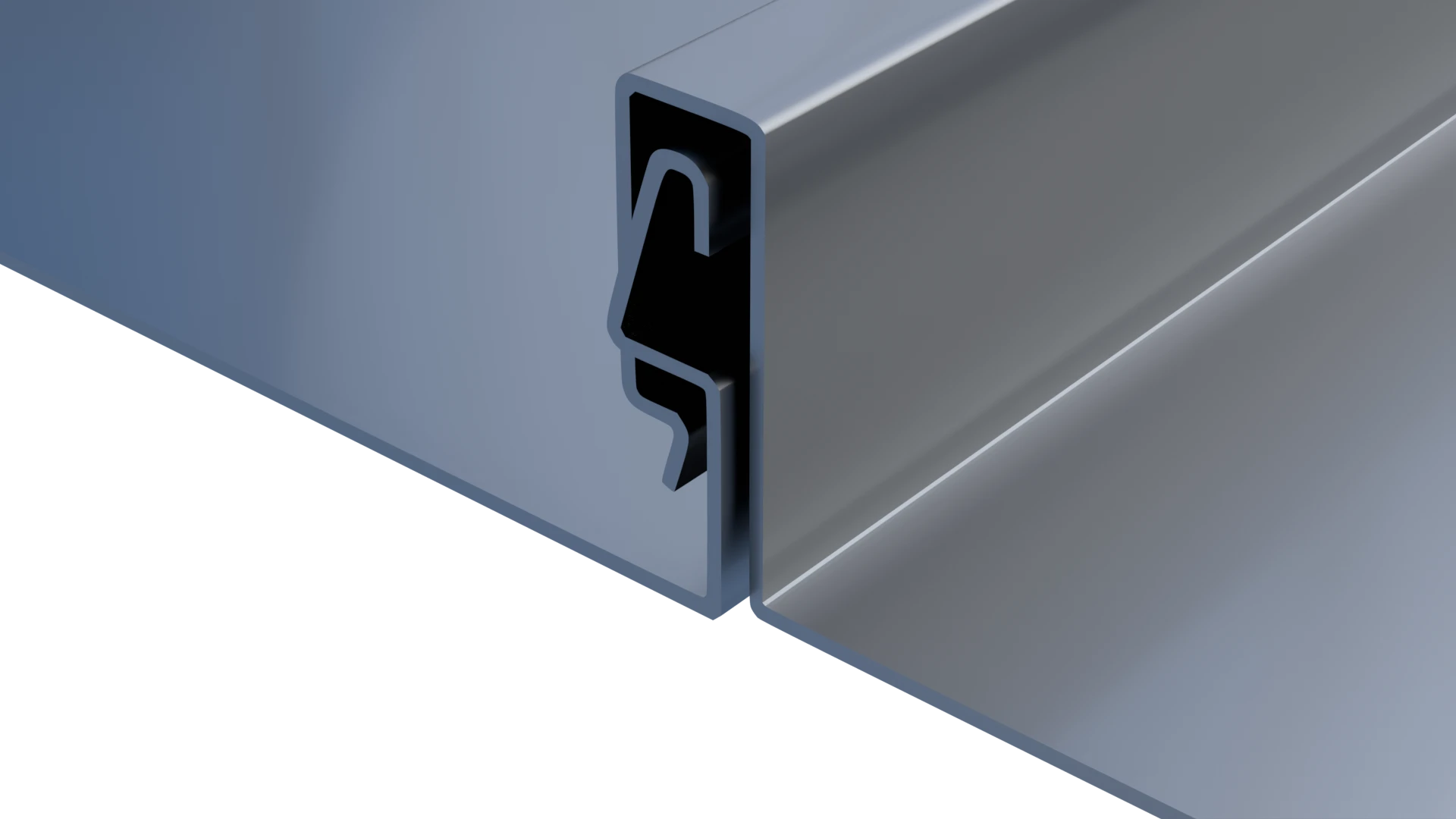

Legacy S155-C is a snap lock profile engineered for superior strength, weather resistance, and architectural refinement without mechanical seaming. Its 1-1/2" integrated seam features a bold 7/16” wide rib and an enhanced engagement system that combines concealed clips with a continuous interlock to deliver excellent seam integrity and watertight protection. Designed for demanding roof applications, the 155SLAllSeam Snap-Lok offers crisp, uniform lines and a smooth, concealed-fastener appearance proven structural performance and installation efficiency.

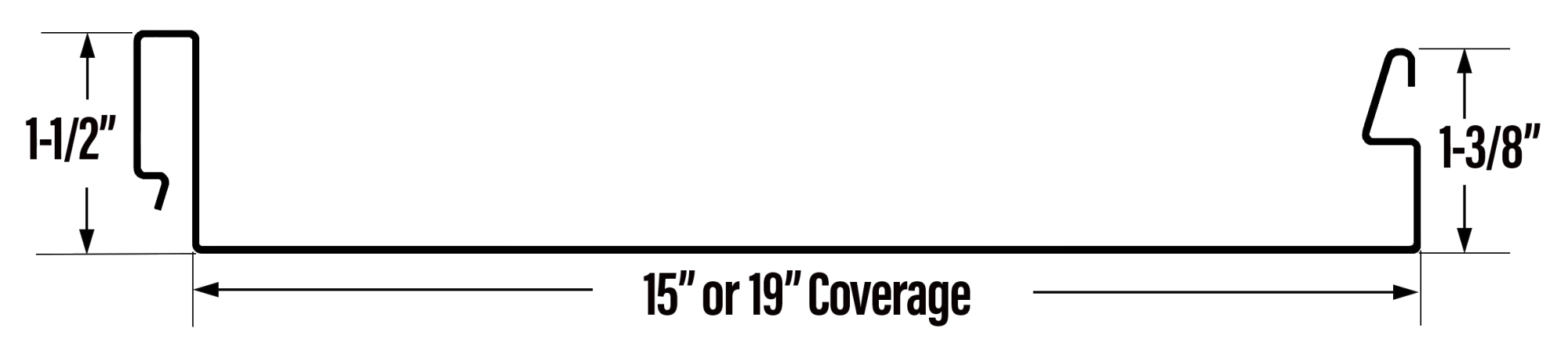

Panel Specifications

  • Seam: Snap-Lok Clip - No Mechanical Seaming
  • Rib Depth: 1-1/2"
  • Seam Width: 7/16"
  • Panel Coverage: 12", 16" or 20"
  • Material:
    • Steel - 22ga, 24ga, 26ga
    • Aluminum - .032, .040
  • Minimum Slope: 2:12
  • Support: Plywood, Wood Plank
  • Product Approvals: Florida Product, HVHZ, TDI
  • UL Listed
  • Options: (contact panel manufacturer for availability)
    • Clip Relief
    • Striations
    • Weathertight Warranty Eligible
