Legacy S145-C 1-1/2" Snap-Lok Clip Roof Panel



Legacy S145-C

1-1/2" Snap-Lok Clip

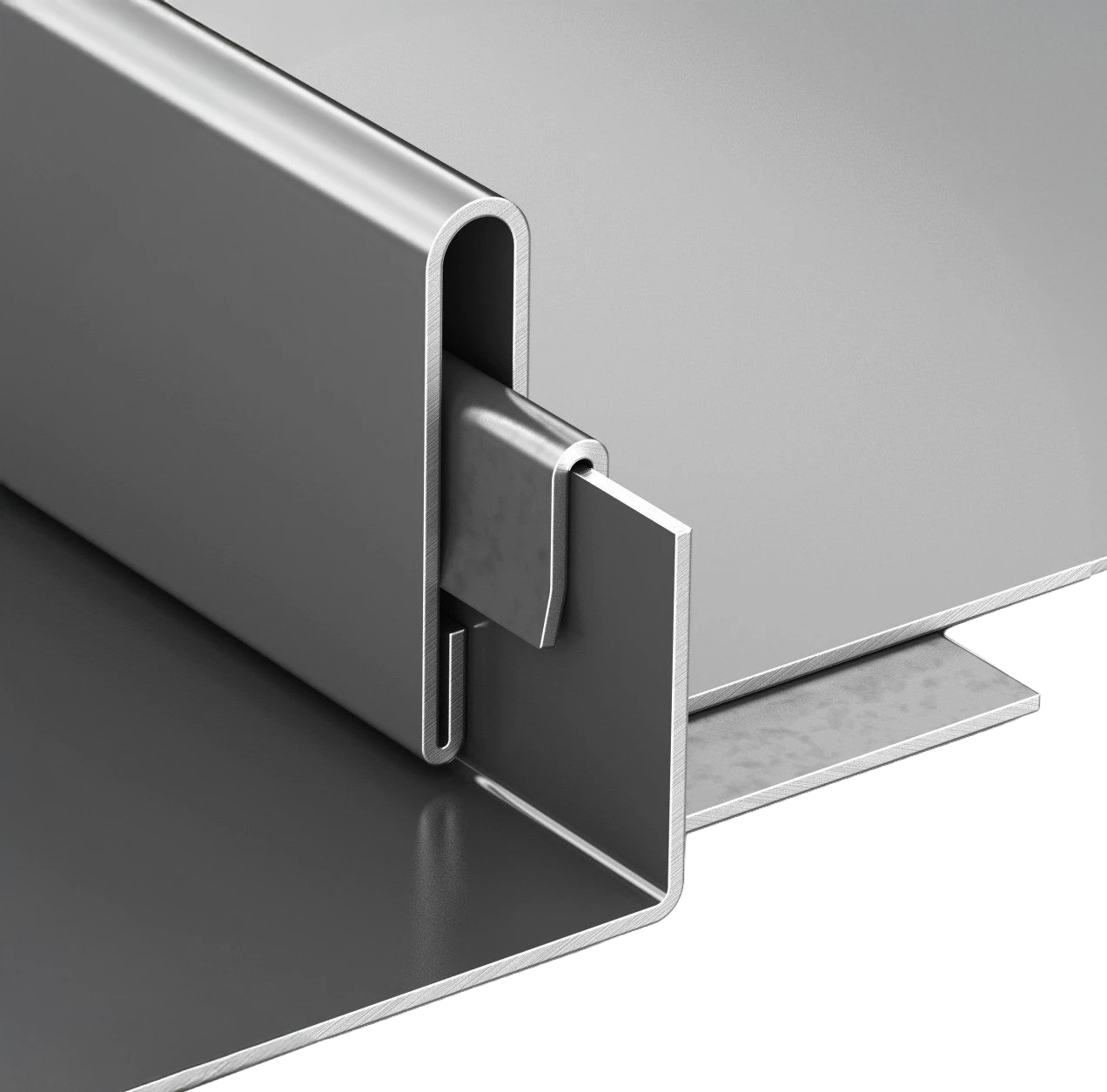

The Legacy S145-C is designed for efficiency, precision, and lasting performance, making it a smart choice for both residential and commercial roofing applications. Its 1-1/2" seam height and narrow 5/32" seam width create refined, clean lines with a crisp architectural look. The traditional clip system provides a secure, concealed connection without exposed fasteners while allowing for natural thermal movement. Engineered for strength and style, the 145 Snap-Lock system combines straightforward installation with a modern, streamlined appearance.

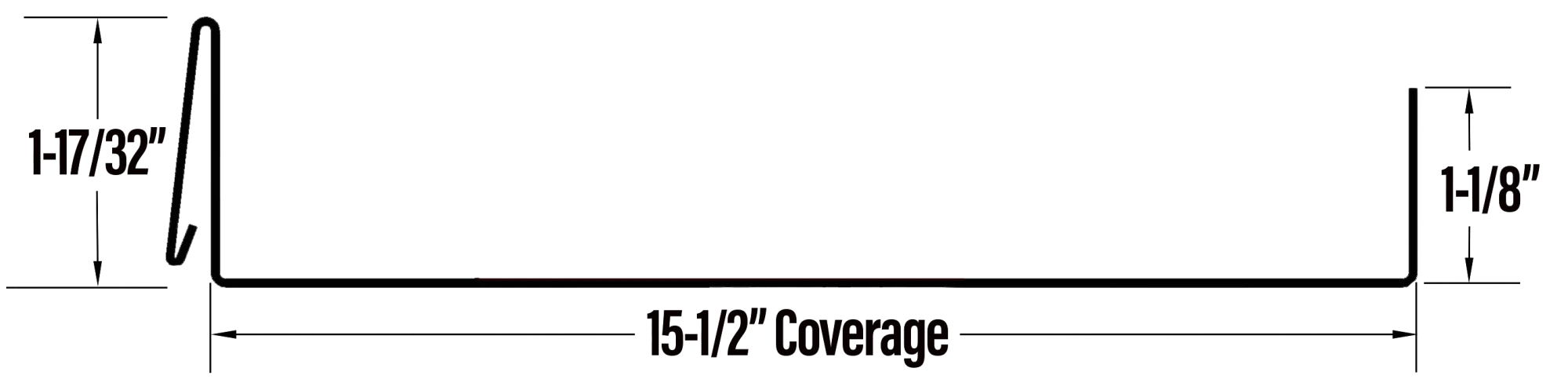

Panel Specifications

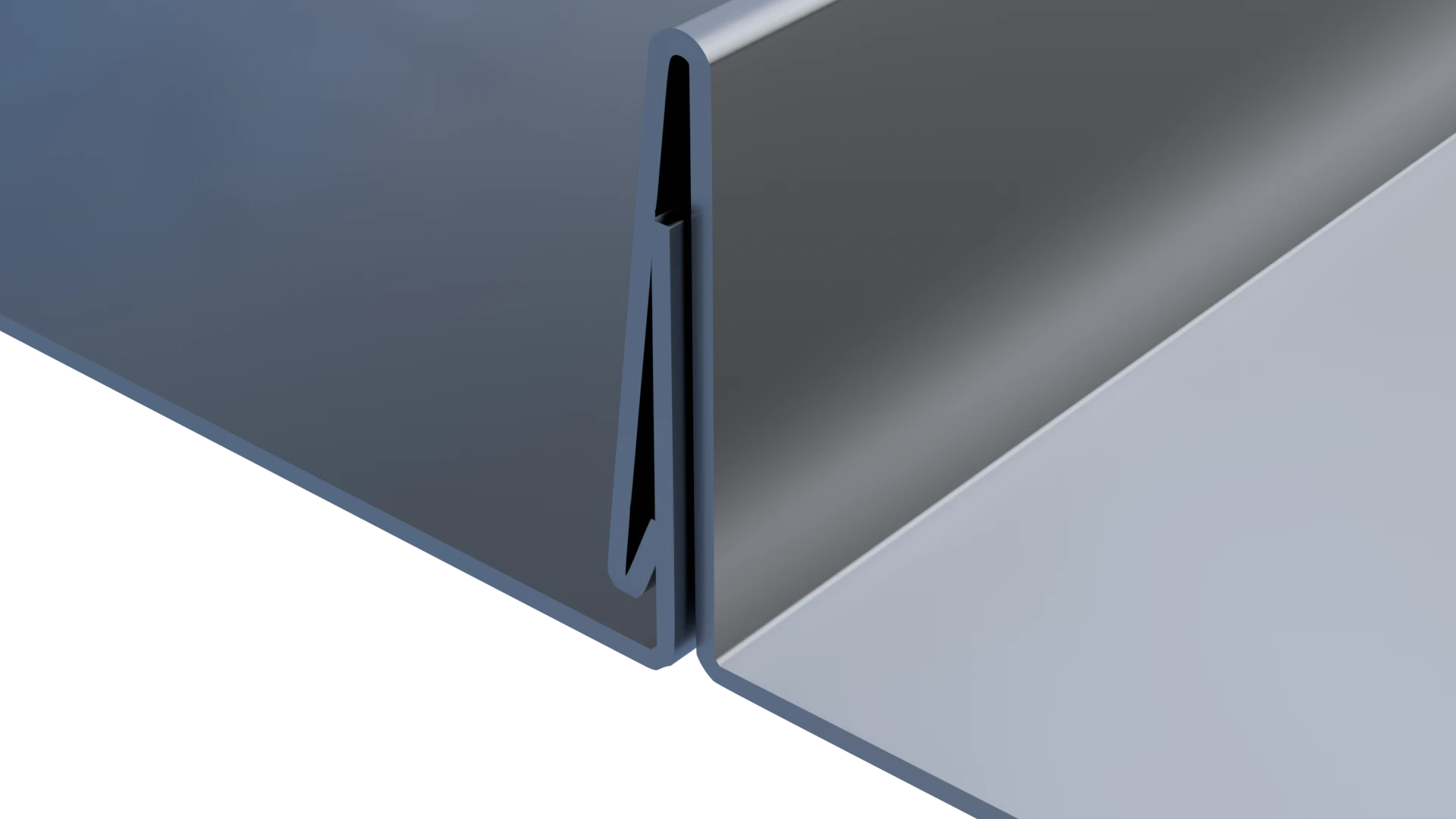

  • Seam: Snap-Lok Clip - No Mechanical Seaming
  • Rib Depth: 1-1/2"
  • Seam Width: 5/32"
  • Panel Coverage: 15-1/2"
  • Material:
    • Steel - 22ga, 24ga, 26ga
    • Aluminum - .032, .040
    • Zinc - 7mm
  • Minimum Slope: 2:12
  • Support: Plywood, Wood Plank
  • Product Approvals: Florida Product, HVHZ, TDI
  • UL Listed
  • Options: (contact panel manufacturer for availability)
    • Clip Relief
    • Striations
    • Weathertight Warranty Eligible
