Legacy M150-C 1-1/2" Mechanical Seam Roof Panel



Legacy M150-C

1-1/2" Mechanical Seam

The 1-1/2" Mechanical Seam profile is crafted for versatility, durability, and long-term weather protection, making it an excellent choice for both architectural and structural metal roofing applications. Its clean, refined lines deliver a modern architectural look while ensuring dependable performance against wind, water, and demanding environments. Engineered for flexibility, the 1-1/2" Mechanical Seam can also be curved to accommodate creative roof designs, offering the perfect blend of form, function, and design freedom.

Panel Specifications

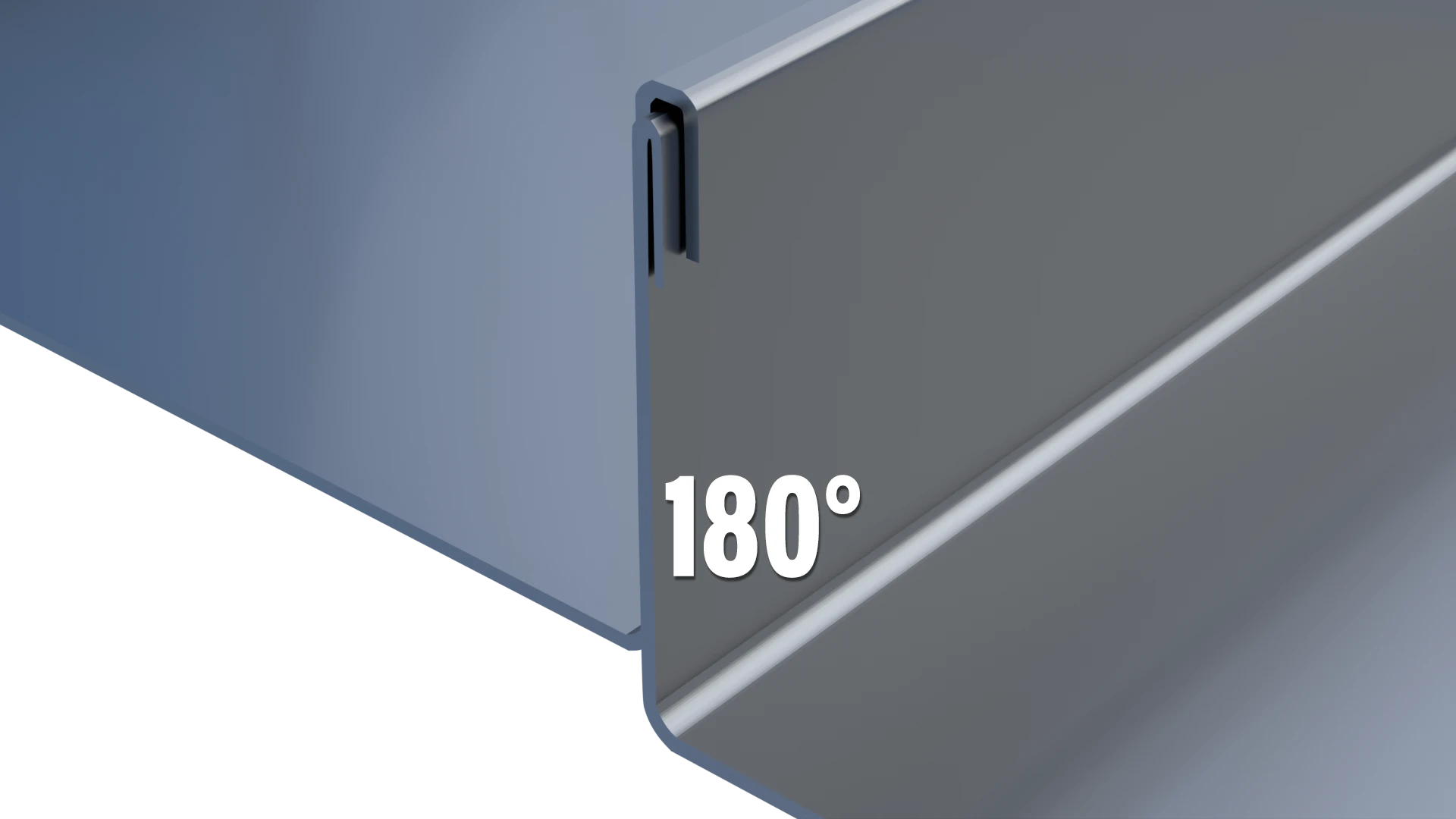

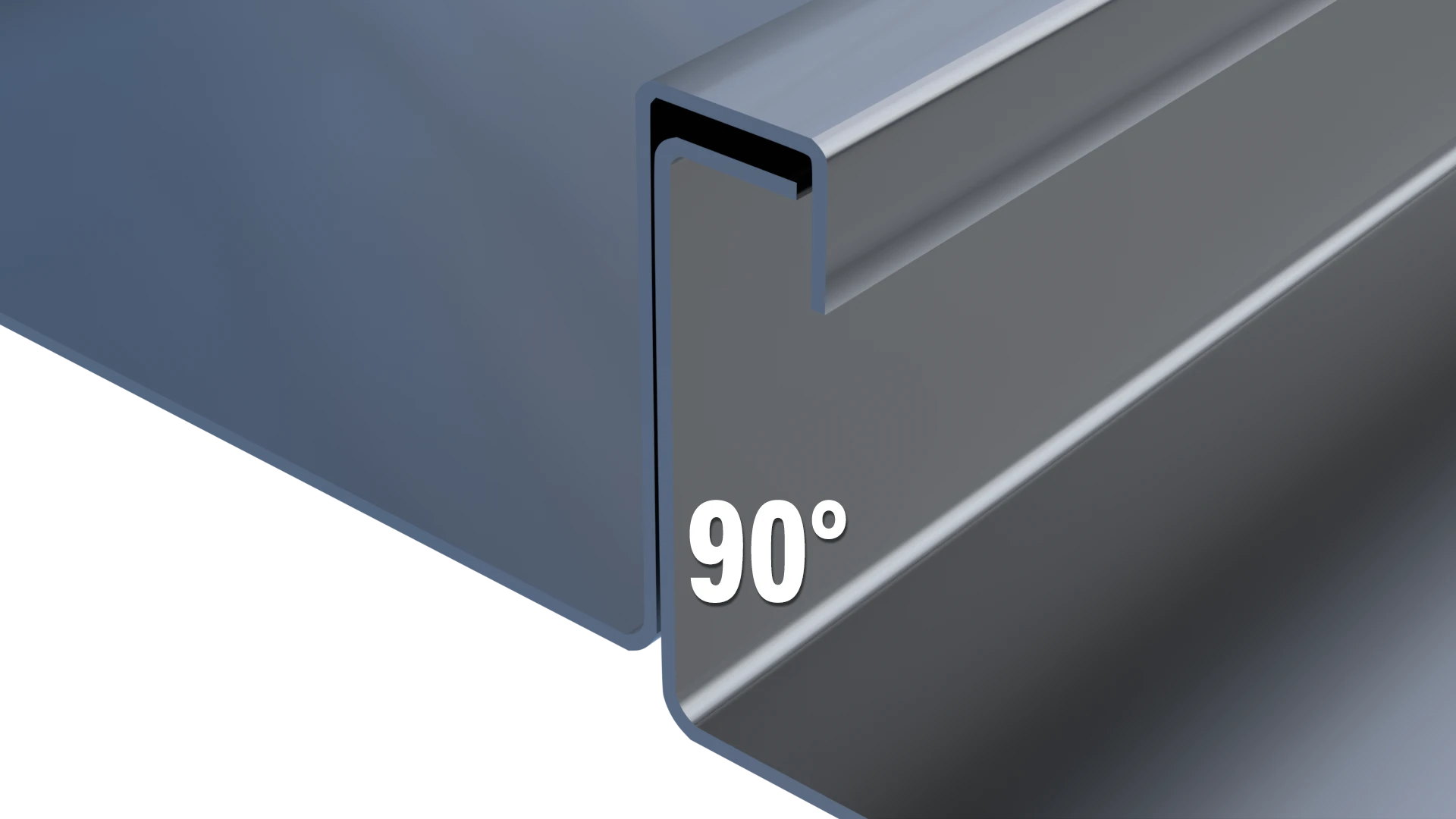

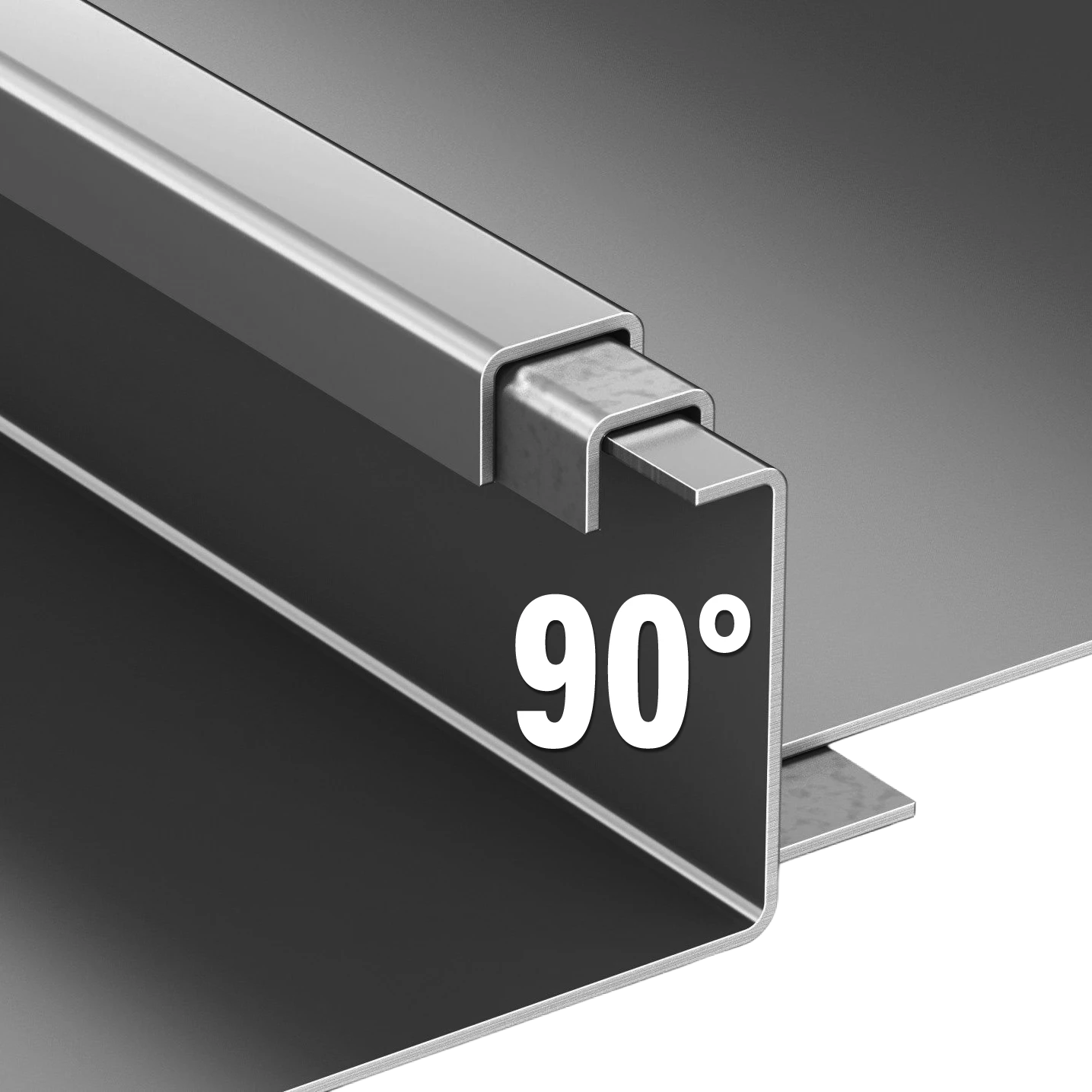

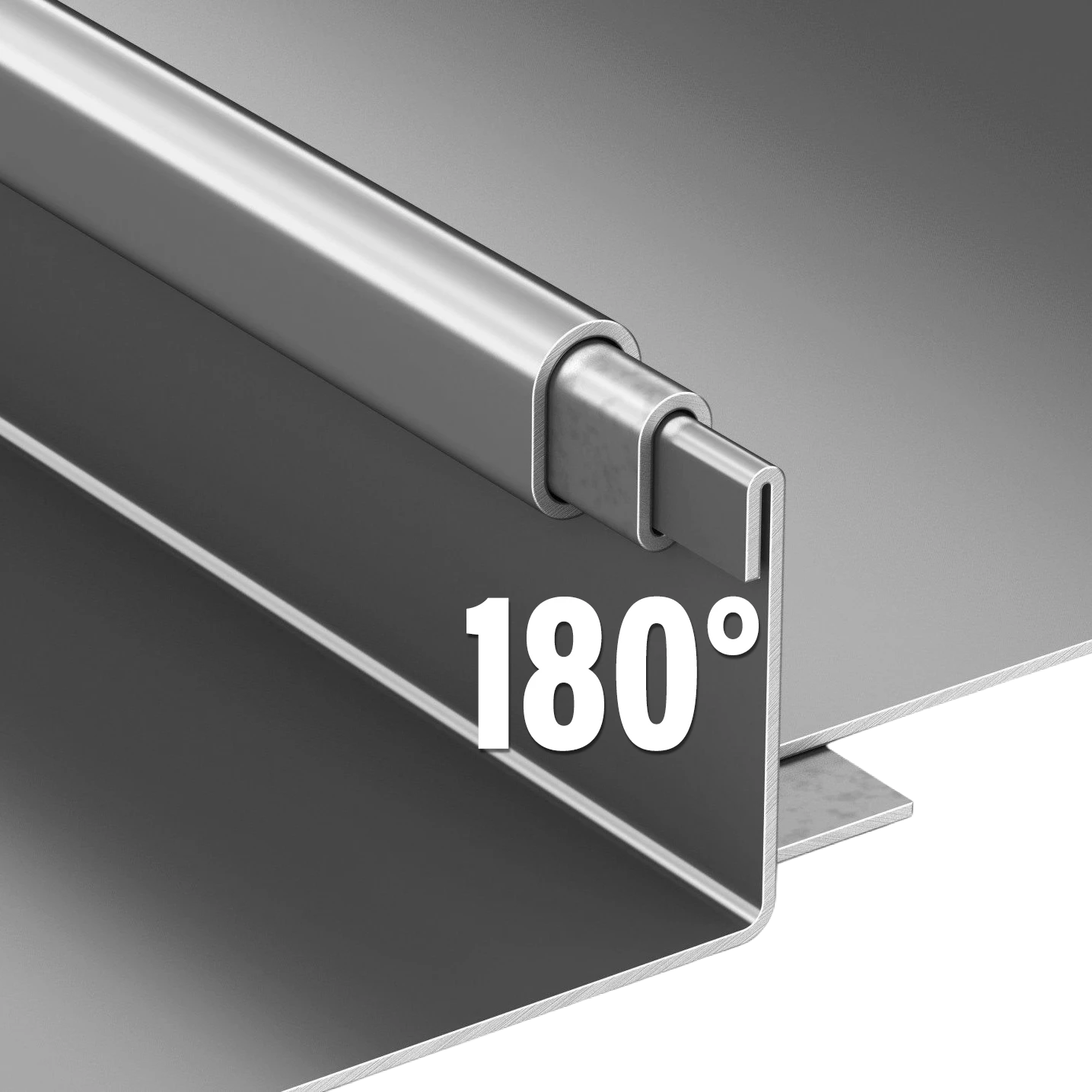

  • Seam: Clip - 90° or 180° Mechanical Seam
  • Rib Depth: 1-1/2"
  • Panel Coverage: 12", 16" or 20"
  • Material:
    • Steel - 22ga, 24ga, 26ga
    • Aluminum - .032, .040
    • Copper - 16oz, 20oz
  • Minimum Slope: 3:12
  • Support: Plywood, Metal Decking
  • Product Approvals: Florida Product, HVHZ, TDI
  • UL Listed
  • Options: (contact panel manufacturer for availability)
    • Curve-Capable
    • Clip Relief
    • Striations
    • Weathertight Warranty Eligible
